Usage Instructions for OUT OF SQUARE corners.
Download Instructions
-

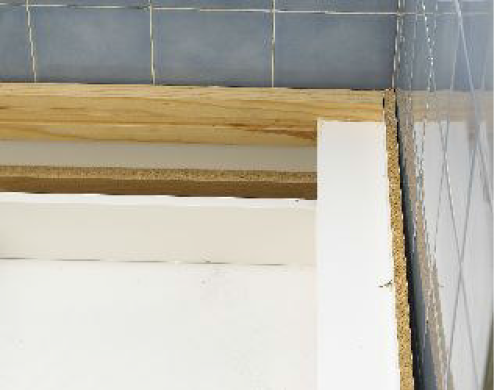

- 1. PROBLEM: An out of square corner.
-

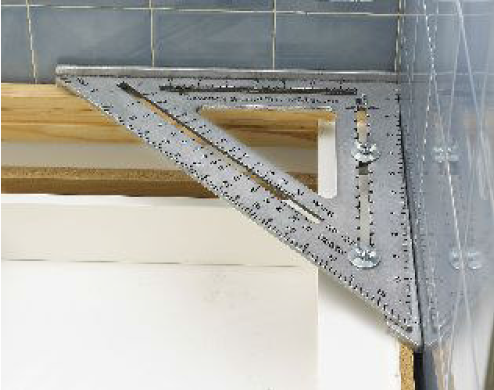

- 2. SOLUTION: Remove the 2 hex pegs (and bolts) and loosen both Layout Bar™ wing nuts. Place the Big 12® Speed®Square flush with back wall.
-
- 3. While holding the square flat and tight against the back wall, align the Layout Bar™ flush with the side wall and tighten the rear-most wing nut.
-

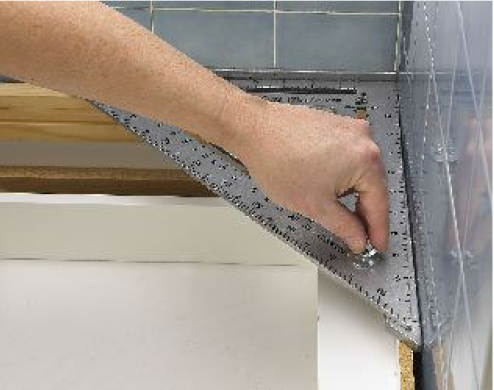

- 4. Keeping the square in position, tighten the front-most wing nut.
-

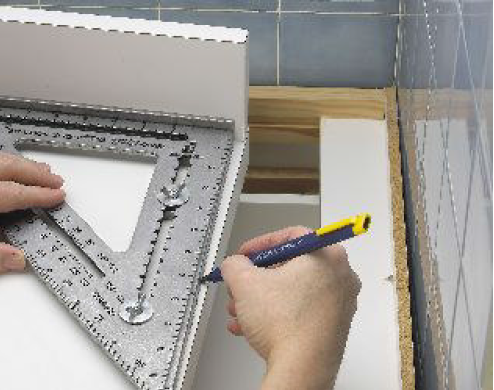

- 5. Place the now adjusted square on the edge of the countertop and transfer the corrected angle.
-

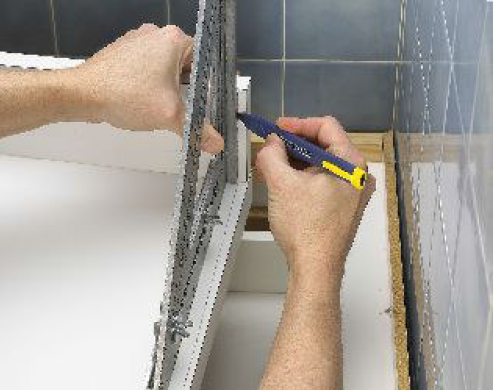

- 6. Stand the Big 12® Speed®Square to mark the back splash.
-

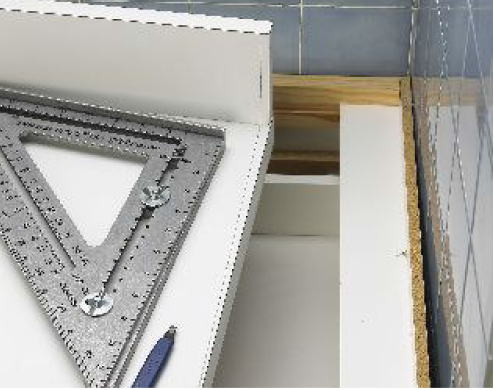

- 7. Final markings… ready to be cut.
-

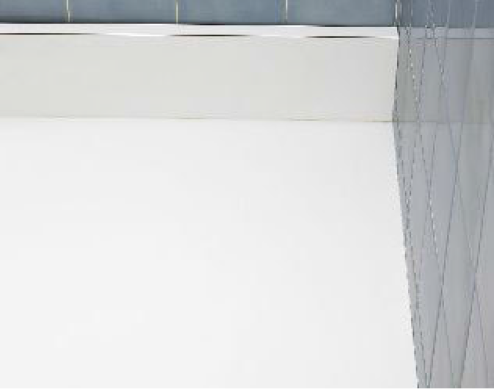

- 8. THE RESULT: a perfect countertop fit.
