T001WZ
Framing Wizard® Folding Aluminum Framing Square

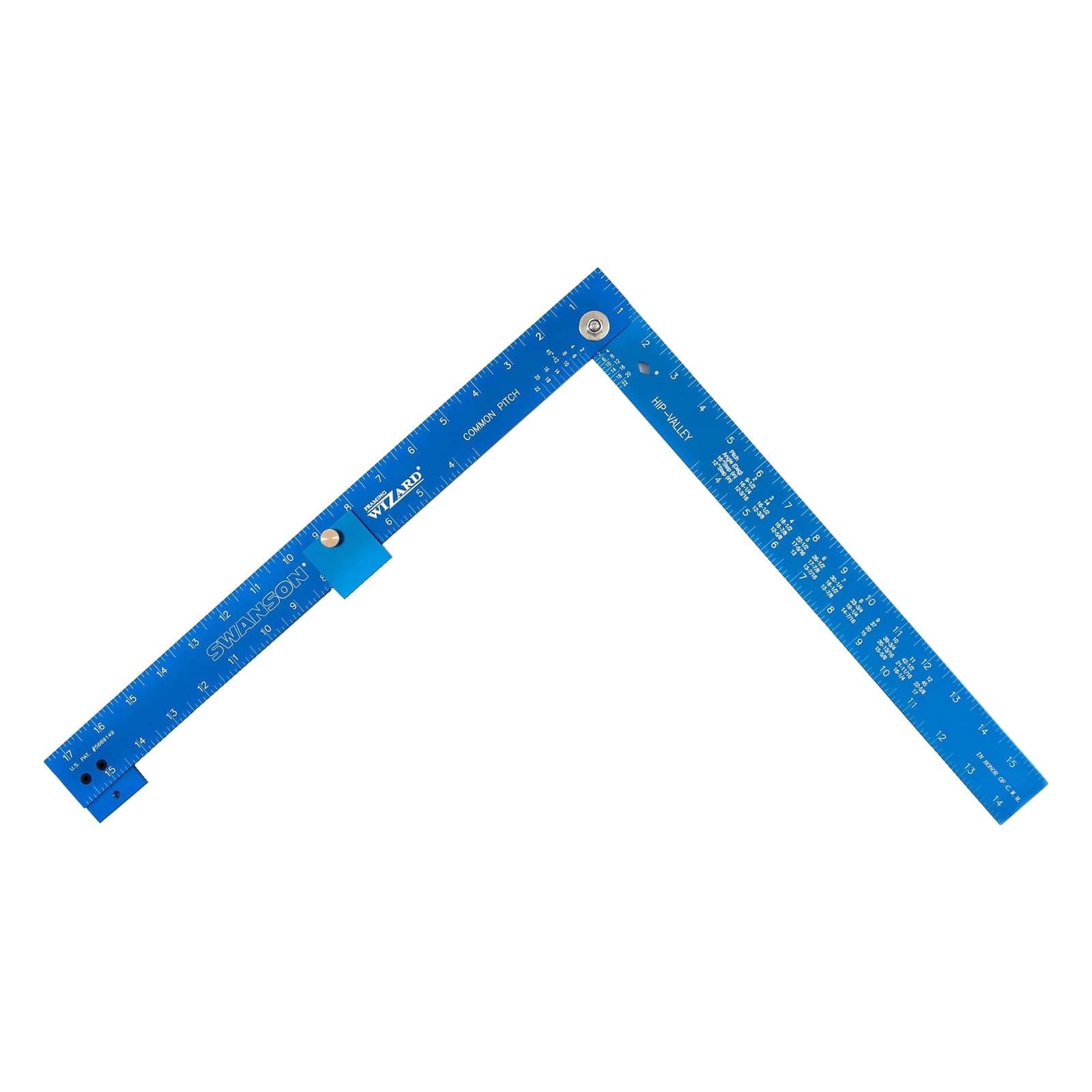

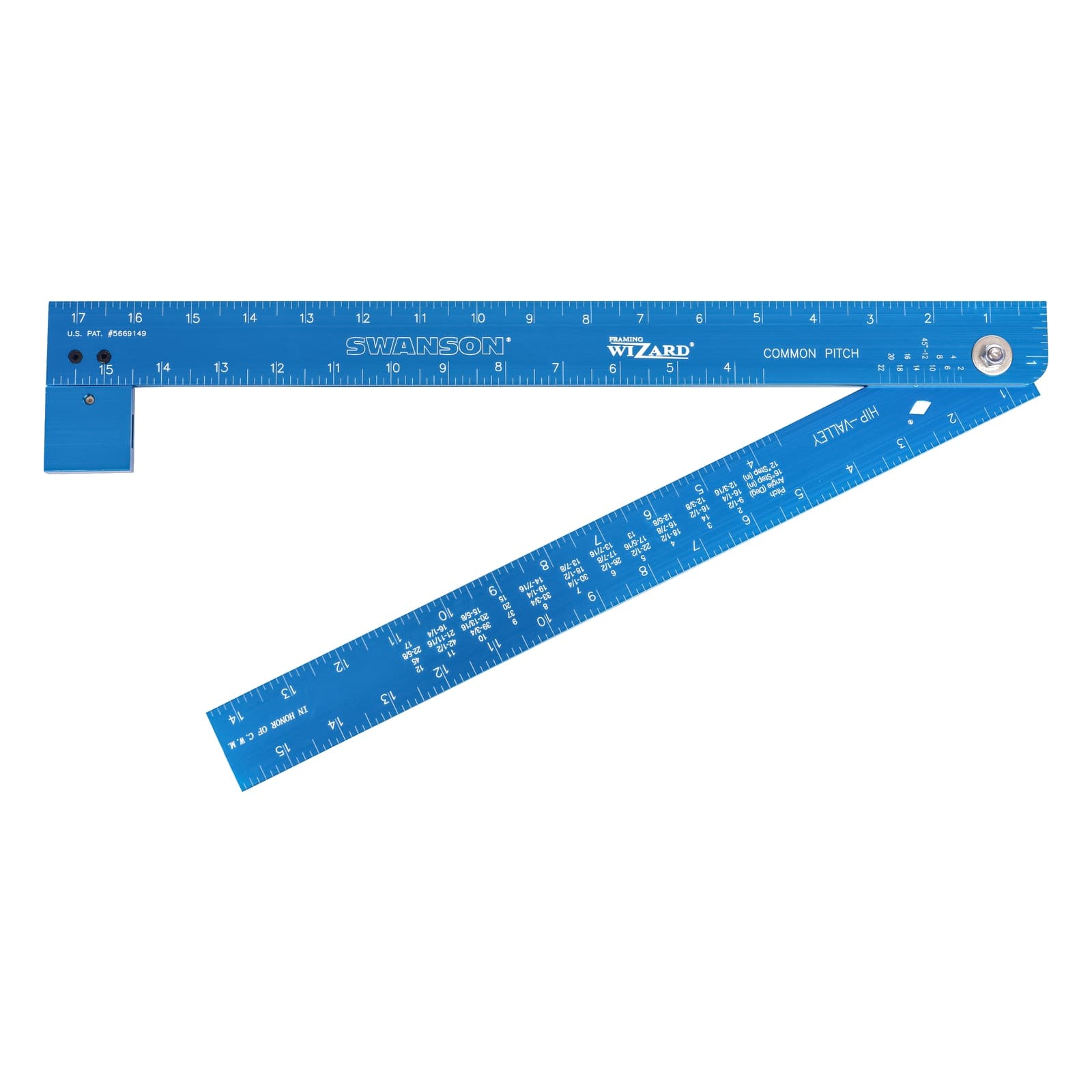

The Swanson® Framing Wizard® is an innovative masterpiece that combines five tools into one: a framing square, a try square, a miter square, an angle finder, and a saw guide. This compact folding square is constructed of high-grade anodized aluminum and includes precision laser-etched markings for the ultimate accuracy. An adjustable layout tab slides along the blade, making it simple to measure angles and mark ridge cuts. This tool also includes a helpful instruction booklet with diagrams for using the Swanson® One-Number® Method for common, hip, and valley rafters. A hinged mechanism features an easily adjustable set screw (Allen wrench included) that allows the user to bring the square back to a perfect 90º if the tool ever becomes out of square. The Framing Wizard® folds down easily to fit into a standard toolbox and is the only portable framing tool for 12 in., 16 in., and 24 in. on-center layout. The Framing Wizard® is truly a square that does it all, making it a must-have for any toolbox.

See Framing Wizard’s Using Instructions

Features
  • Multi-tool: framing square, miter square, angle finder, saw guide, & try square

  • Includes your favorite features from the Speed® Square and a framing square, including the One-Number® Method

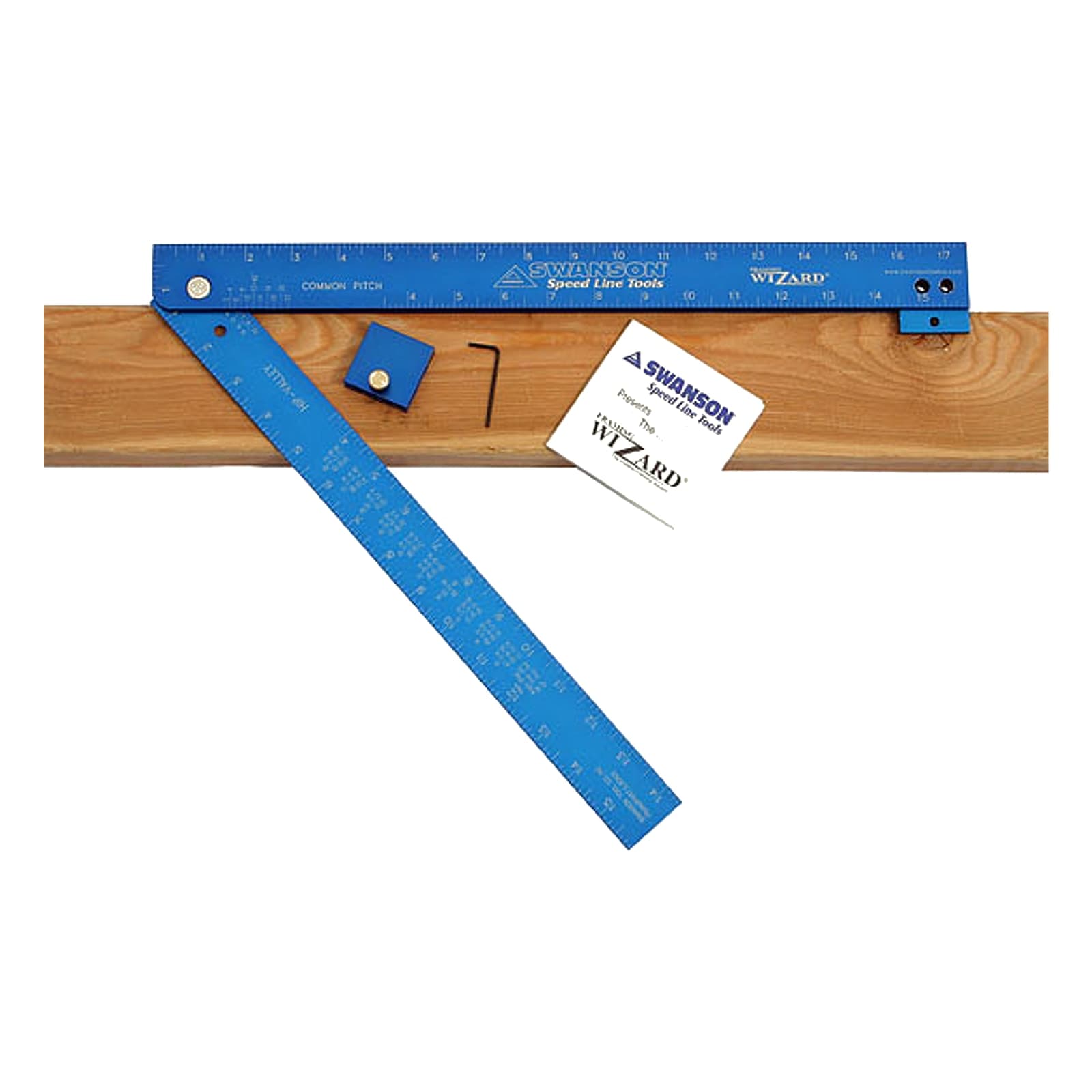

  • Durable, high-grade anodized aluminum construction features pitch finder and Swanson® Diamond® cutout

  • Features adjustable, sliding tab for locking the blade for repetitive angles and laying out 12 in. on center

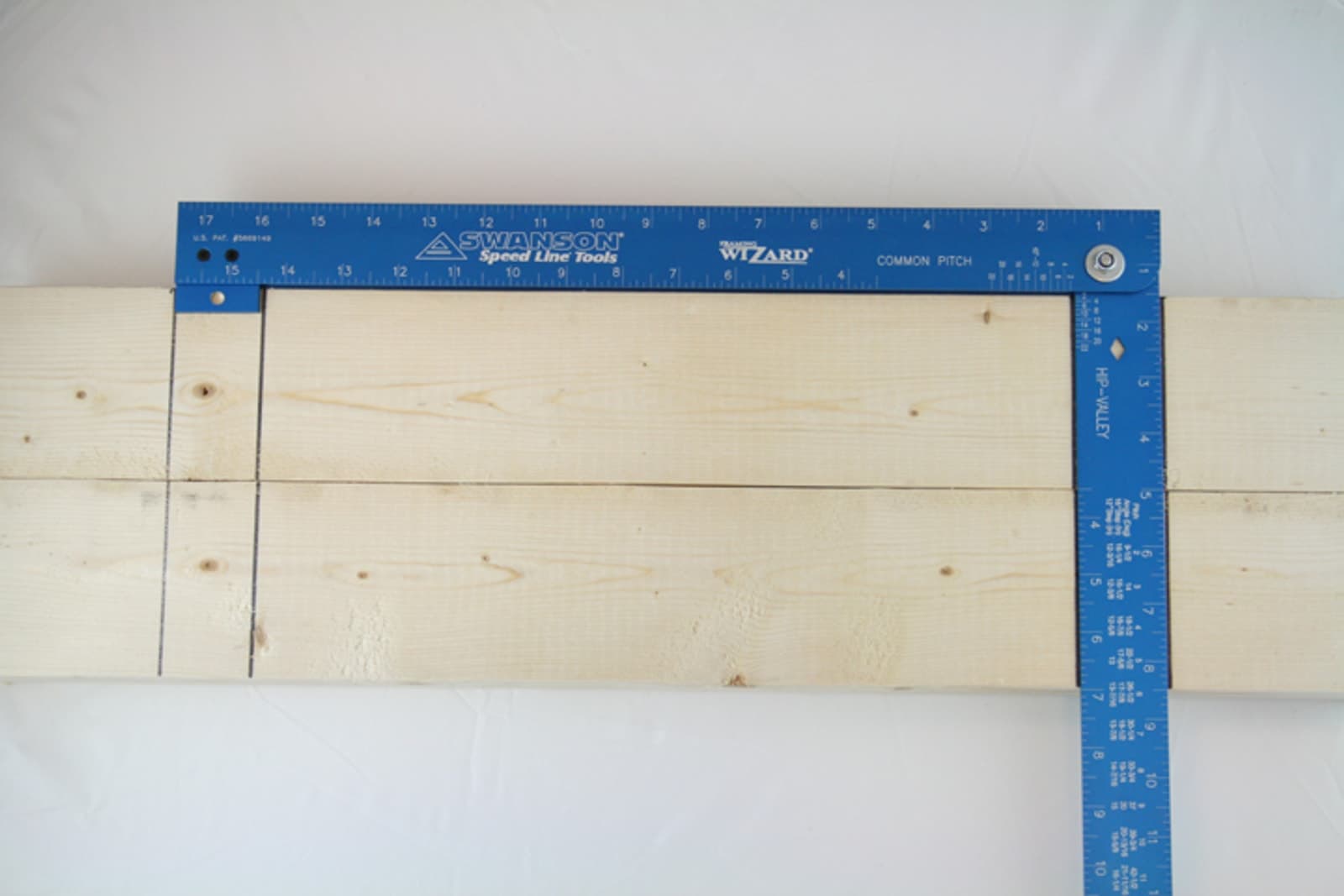

  • Simultaneously mark top and bottom stud plates.

  • Portable, compact design folds down to fit into a standard toolbox

  • Includes instruction book for using the Swanson® One-Number® Method and an Allen wrench for adjusting the square

  • Precision laser etching on high-visibility blue finish creates contrast for easy readings

  • Layout tab secures square onto material for accuracy when measuring angles and making marks

  • Includes Jack rafter/rake wall scales

Share
Specifications Assets
  • Includes Instruction Book
  • Includes Allen Wrench for realigning back to square
  • Includes Sliding Tab for repetitive angles and 12 in. on centers
  • Dimensions—17.5 x 2 x 0.75
