TA122

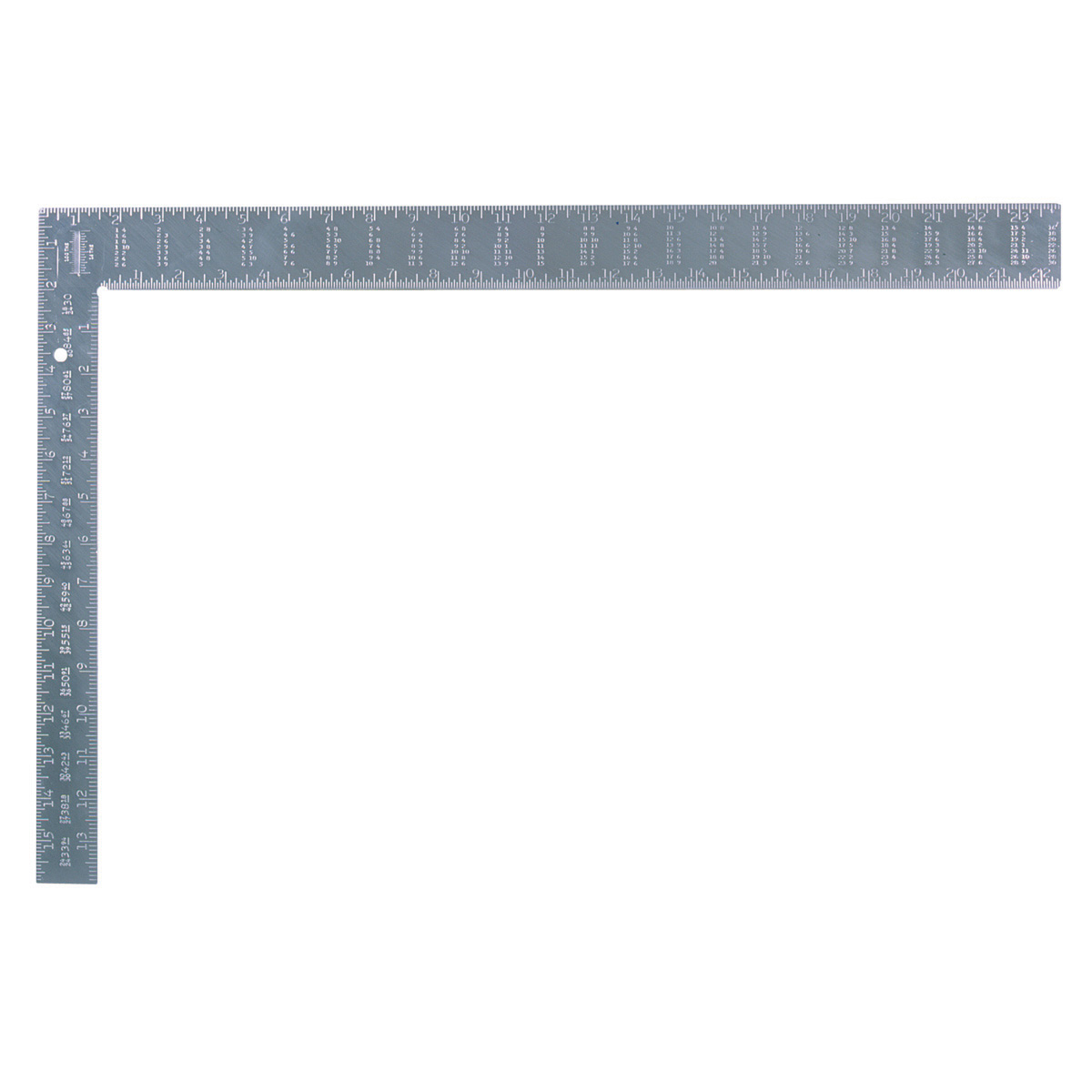

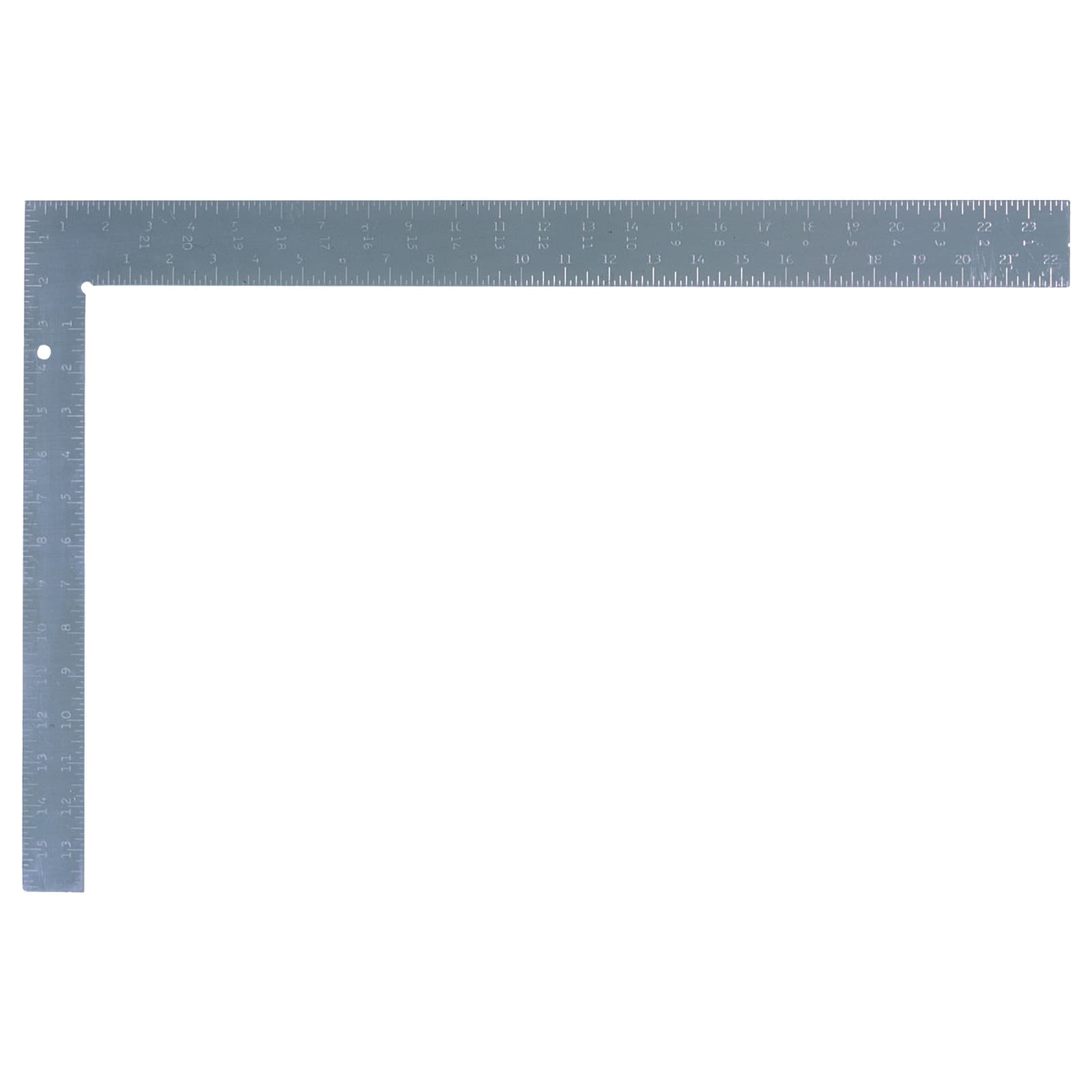

16 in. x 24 in. Aluminum Rafter Square

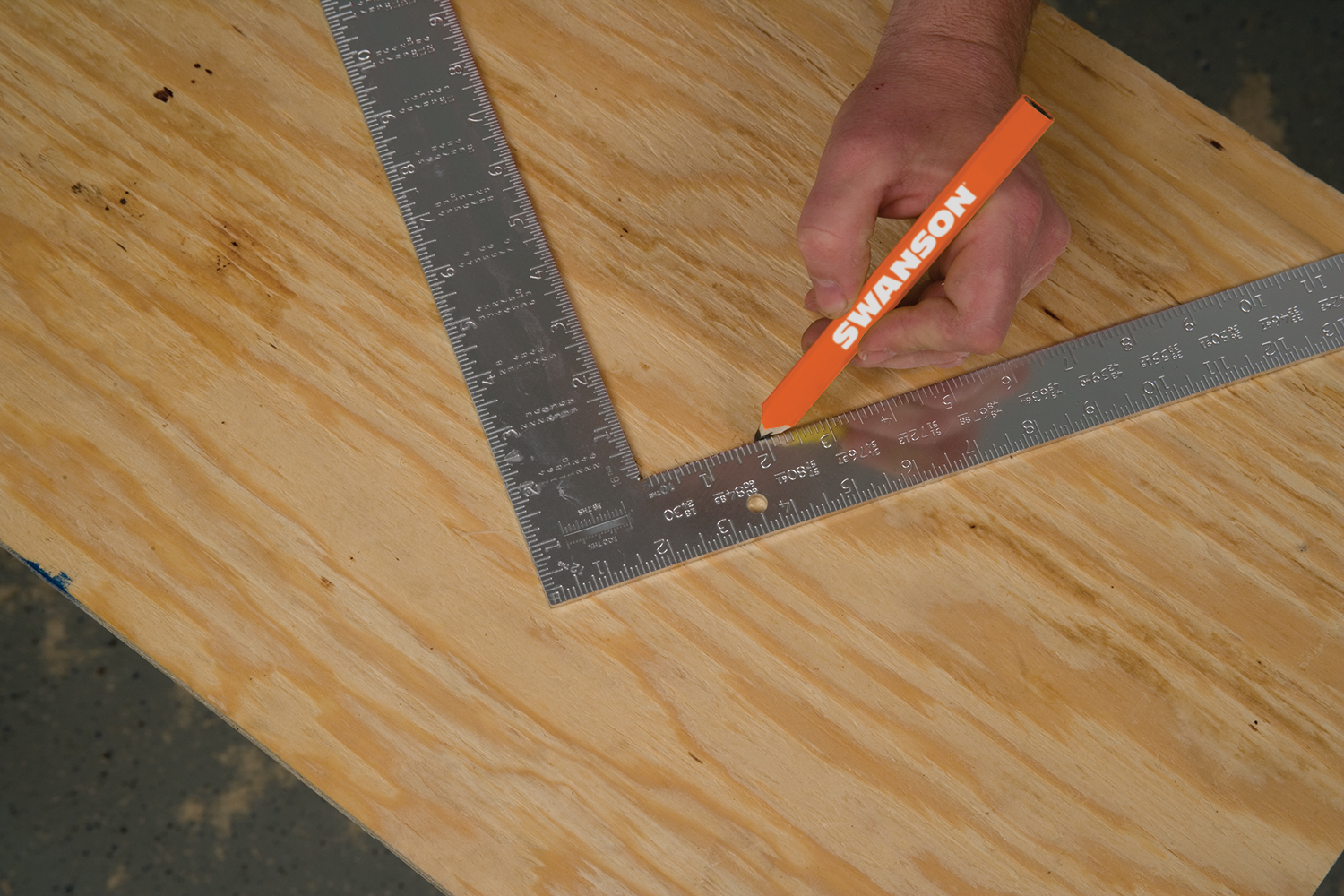

Swanson’s 16 in. x 24 in. Aluminum Rafter Square is a lightweight performer designed for a long life on the job site. High-grade aluminum alloy resists impacts & scratches and doesn’t retain heat out in the sun. A silver anodized treatment increases durability, and the 16 in. by 24 in. body aids in stud layout.

Features
  • Rafter, brace & essex tables; octagon scales

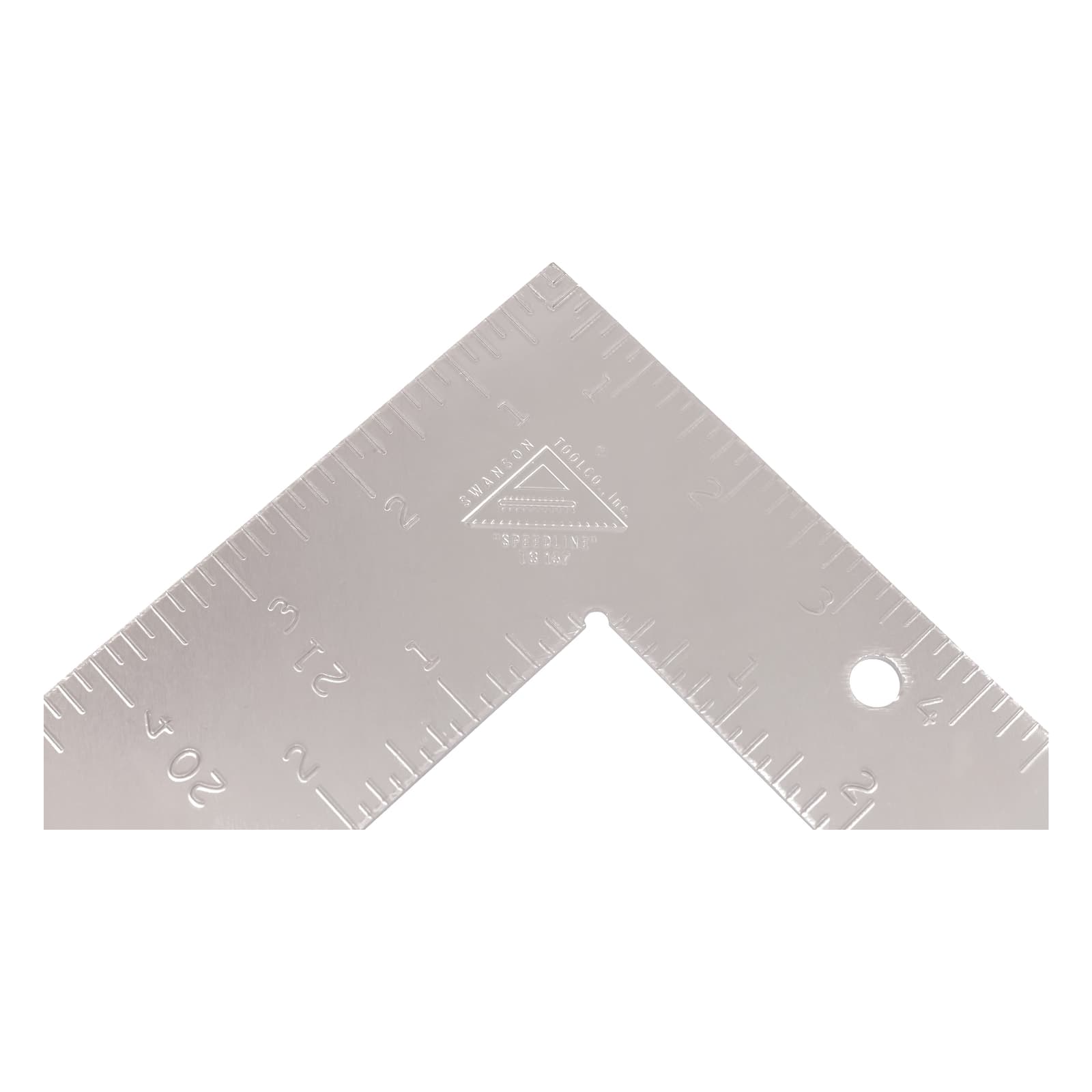

  • 1/8, 1/10, 1/12, 1/16 & 1/100 Scales

  • Permanently impressed gradations

Share
Specifications Assets
  • 16 in. x 24 in. size
  • 1/8, 1/10, 1/12, 1/16 & 1/100 Scales
