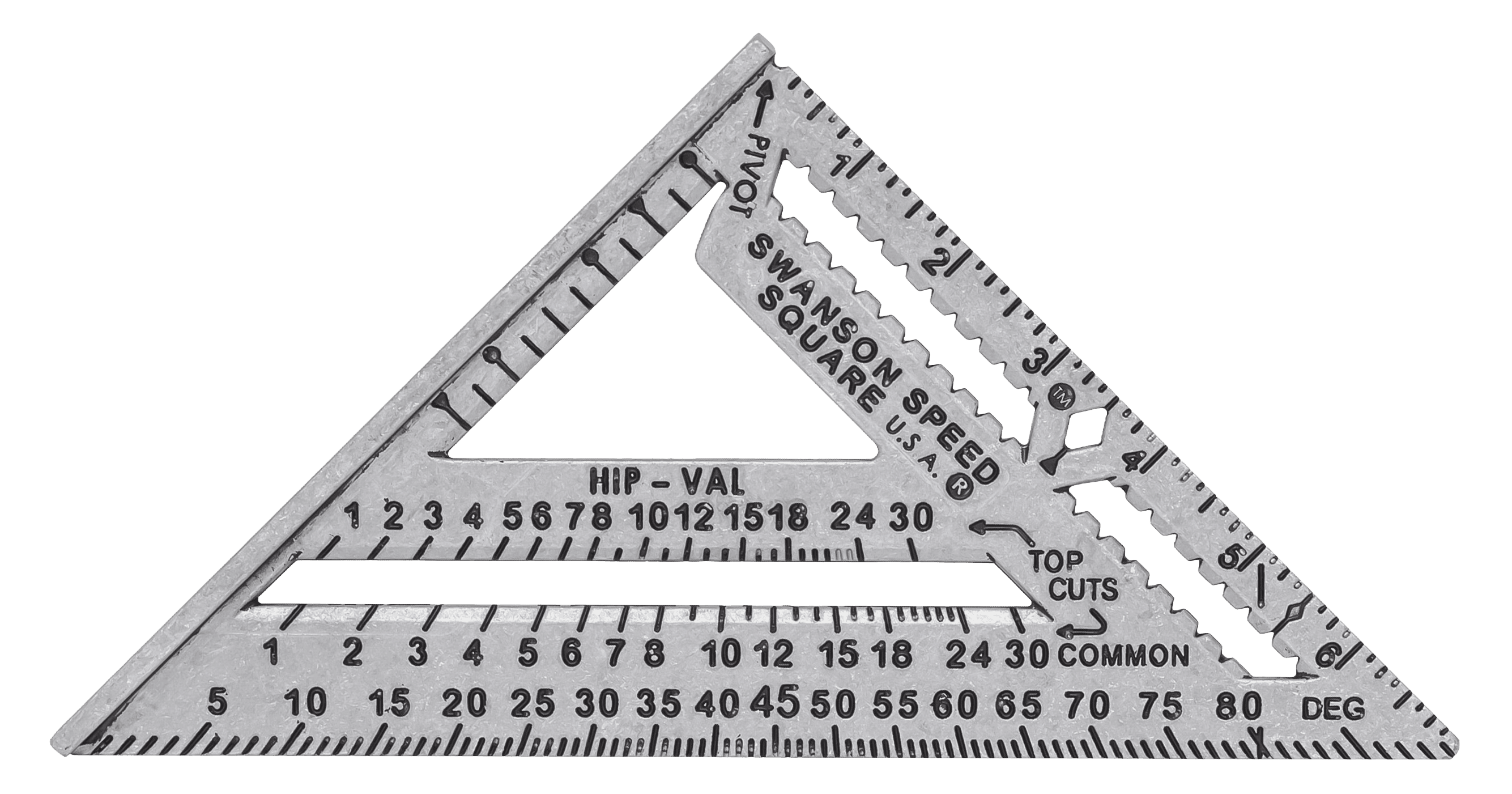

Speed® Square PRO

Introducing biggest evolution of the Swanson Speed Square in almost 100 years! The Speed Square PRO. This revolutionary layout tool born out of the true legacy tool, the Speed Square, is packed full of new features and has the same reliable features you have always counted on from the Swanson Speed Square making layouts even faster and easier!

The Speed Square PRO starts with all the incredible features of the original Speed Trim Square, then takes it up a notch. From a new 22½° angle coming off of the pivot for quick layouts to an additional 5½ in. diamond mark for working with 2×6 material. It also has 1½ in. edge used to measure the width of 2X material for quick framing. The Speed Square PRO is the world’s most proficient tool designed for the true professional.

Features

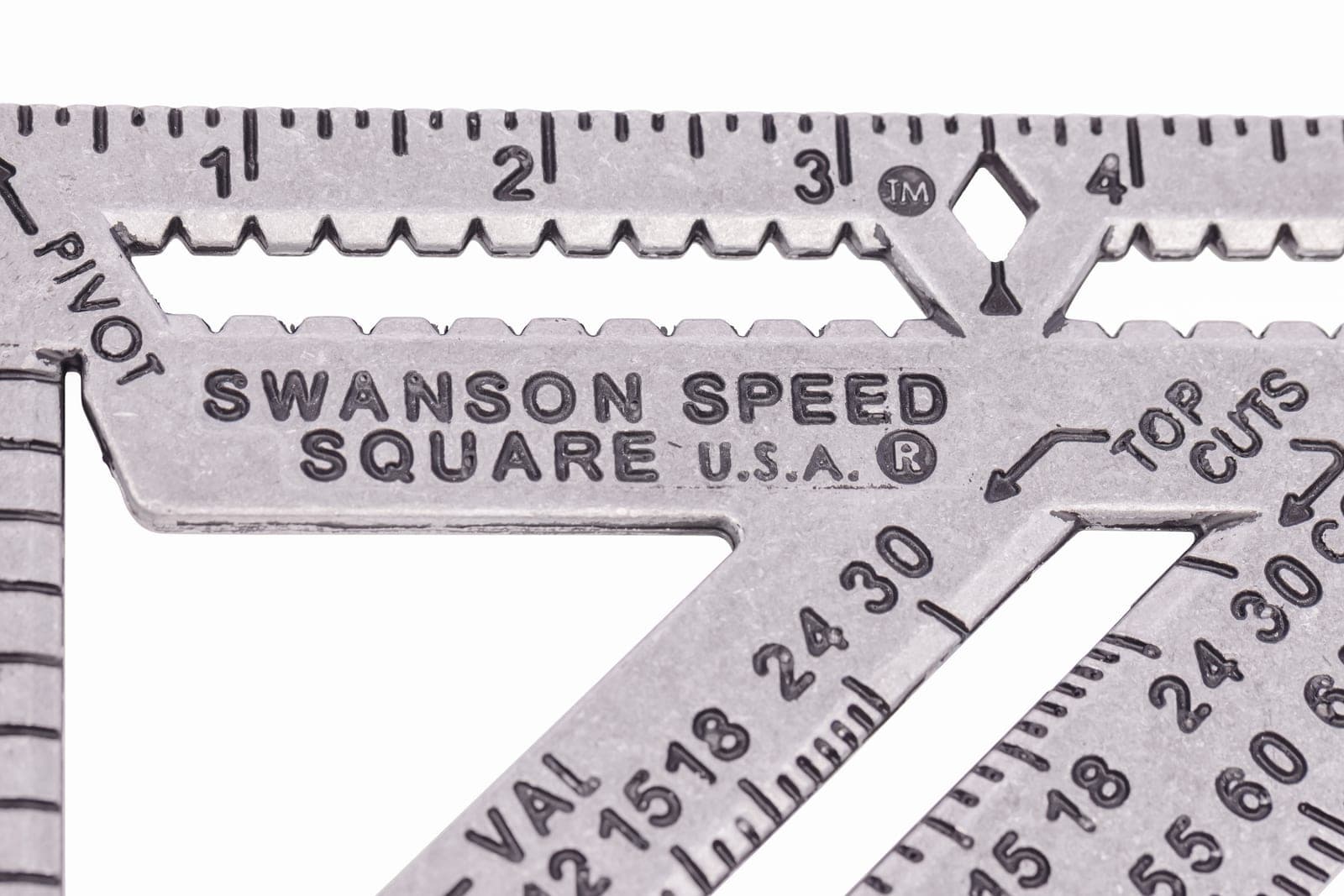

  • 2x LONGER Scribe Bar with 1/8 in increments and the diamond cut out bridge that adds support and the famous trademark Swanson Diamond™ Cut Out at the 3 in. mark

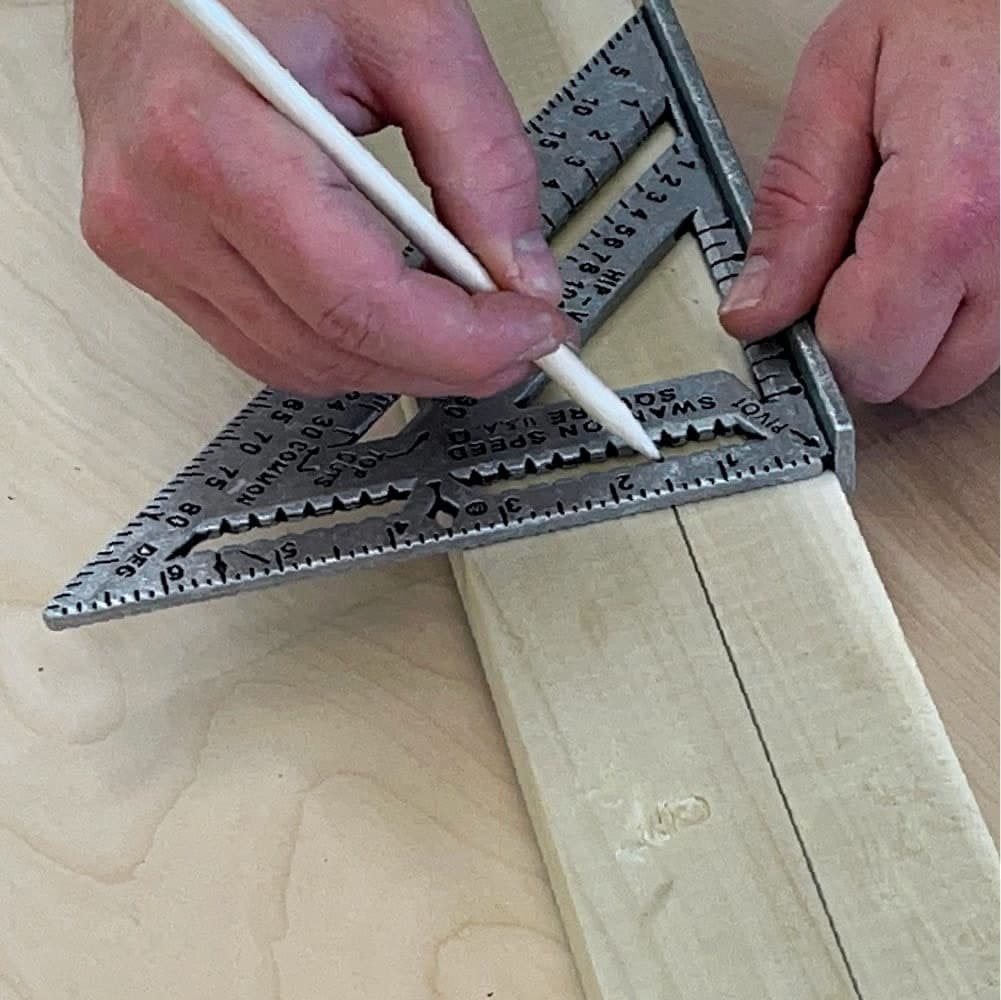

  • 1-1/2 in. EDGE- the width of 2X material -mark both sides of studs

  • 22-1/2° ANGLE coming off of the pivot for quick layouts

  • 3 1/2 in. Diamond™ cutout for working with 2 x 6 material

  • Beveled edges get the square closer to the working material resulting in more accurate Top Cut measurements

  • Easier to see numbers and markings

  • 2 Convenient marking edges for 3/4 in. and 1/2 in.

  • High-visibility, black gradations with a non-glare, matte finish for easy reading in any lighting conditions

  • Heavy-gauge billet aluminum alloy construction is die-cast for increased accuracy over laser-etched and extruded stamped rafter squares.

  • Gradations included for marking common, hip, valley, and jack rafters. Useful for determining and marking angles and making square cuts on boards.

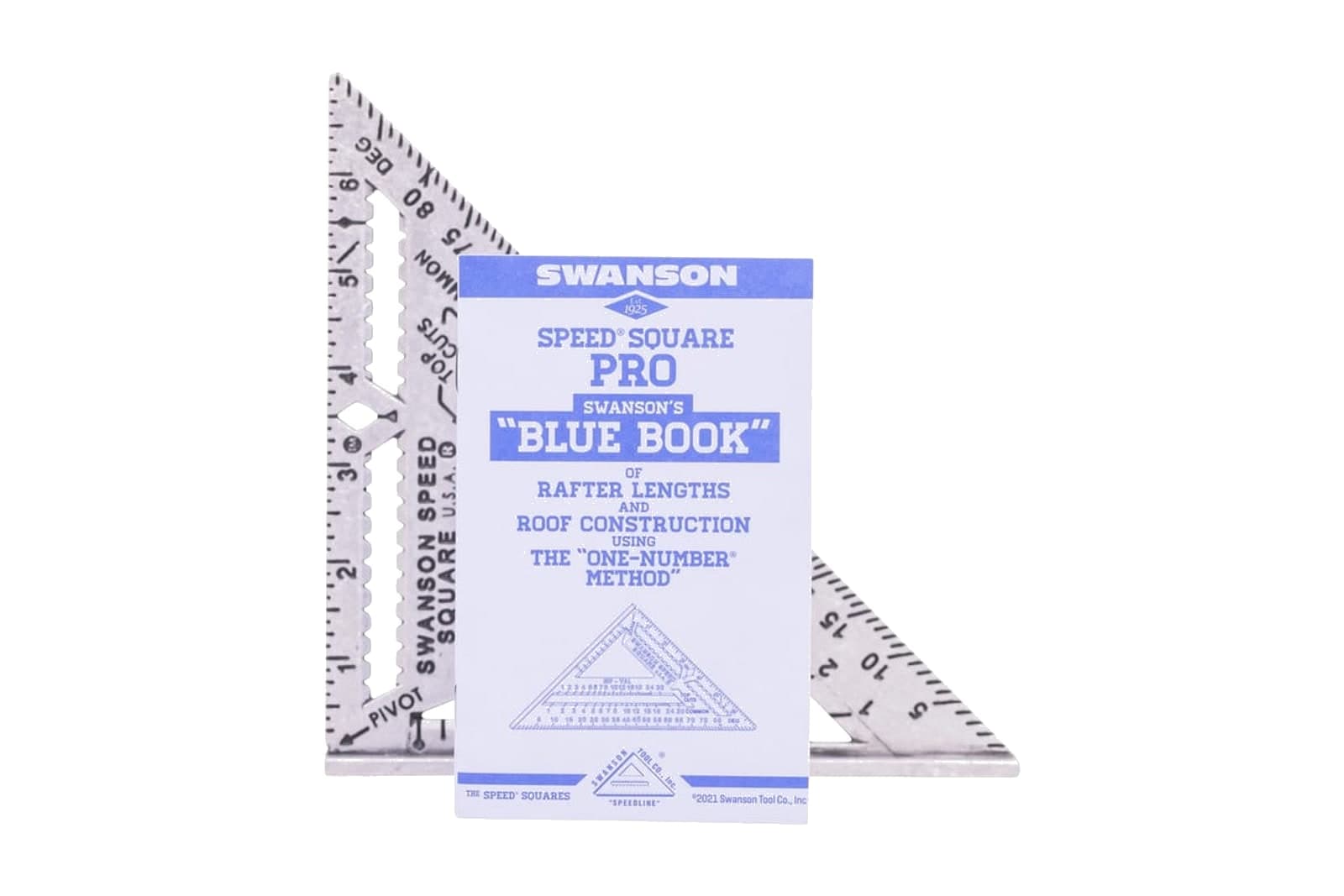

  • Includes pocket-sized Swanson® Speed Square PRO Blue Book—a comprehensive reference guide with our One-Number® Method to help workmen make correct angle cuts for any pitched roof.

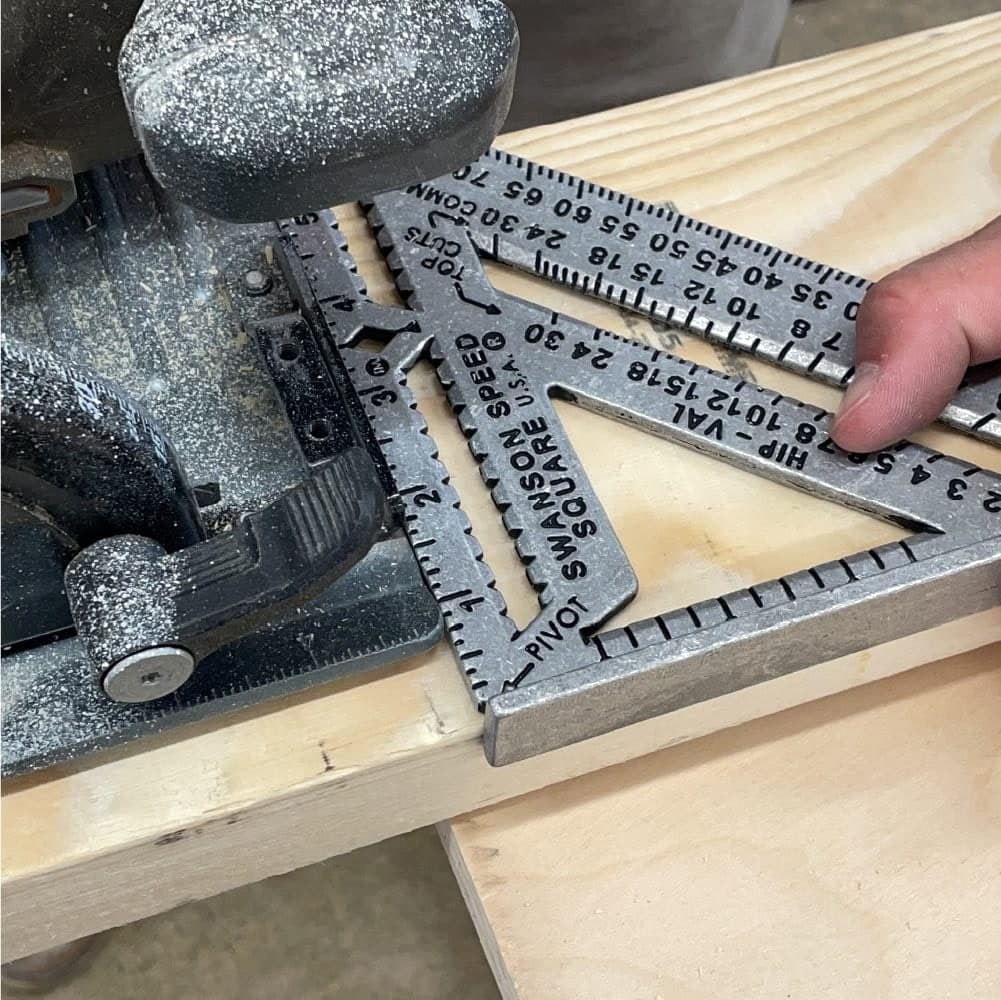

  • Multi-tool: Try square, miter square, saw guide, line scriber, and protractor. For what it does, the Speed® Square belongs on every tradesman's tool bench.

Share
Specifications Assets
  • Dimensions (in.)—7.25 x 7 x .875
  • Packaged with the 44-page Swanson® Speed Square PRO Blue Book
